Fireball XL5 Jetcar 3D Print Files Page

Below are several .stl files for 3D printing a model of the Fireball XL5 Jetcar. This car was also seen in an episode of Stingray.

[Files last updated 15-Feb-2018]

3D Model (Original by Gary Reighn)

This model may be used without restriction for personal use only. For other non-personal use, please contact Gary@reighn.com.

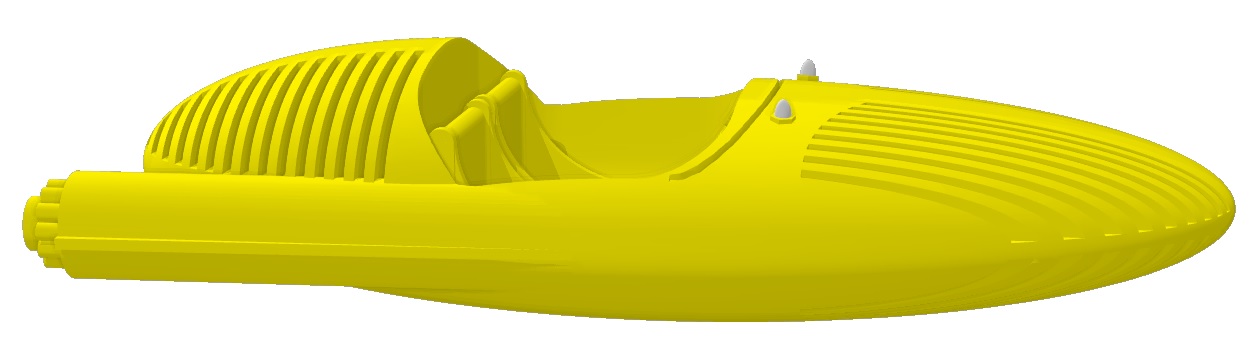

Jetcar with no window (slot for clear plastic window)

Jetcar with solid window

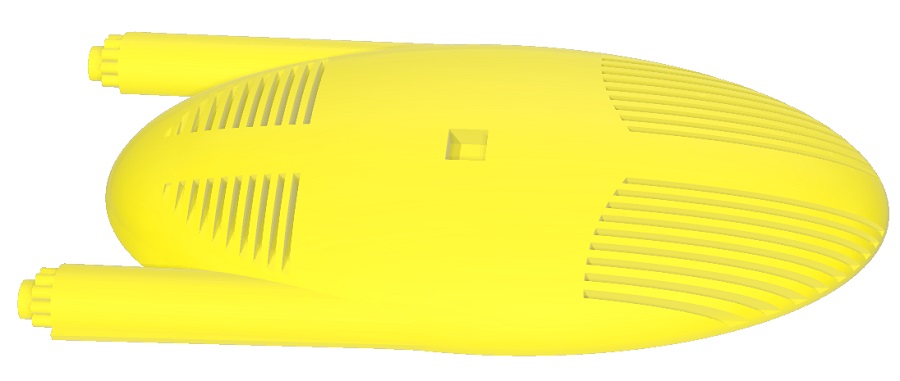

Jetcar with no window (slot for mounting - bottom view)

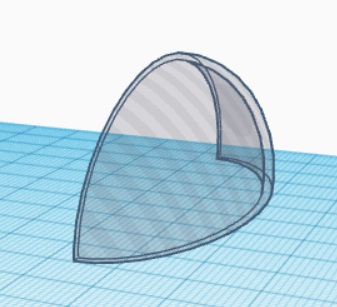

Windshield form

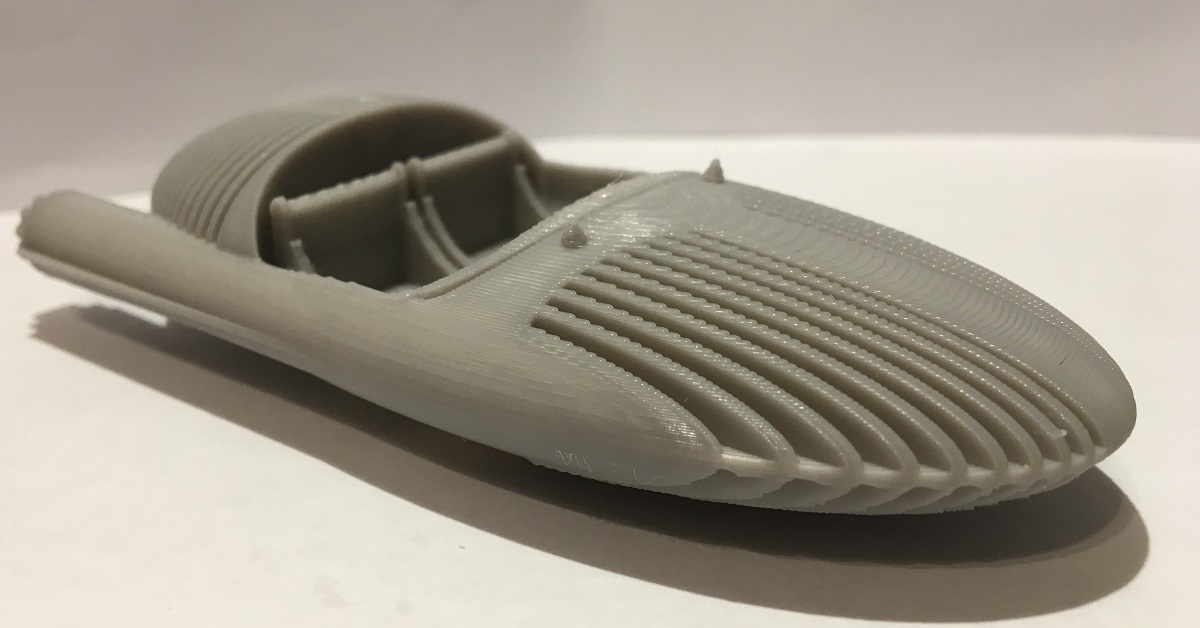

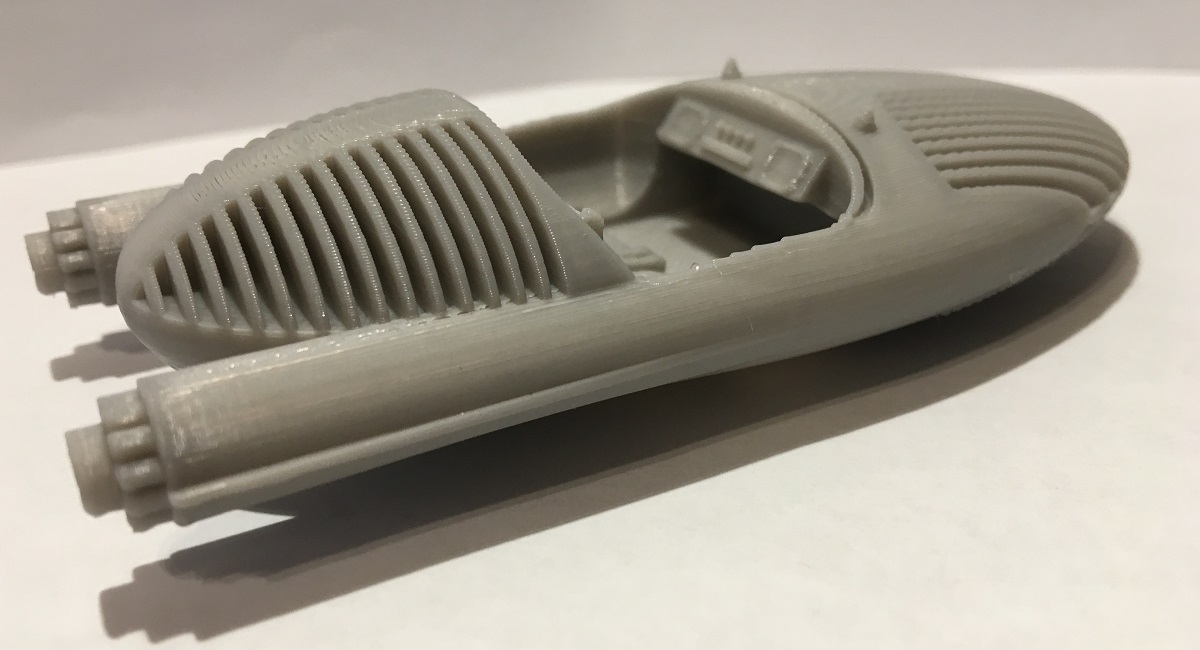

Prototype print 100% (approx 4.5" in length)

To print this model at optimum quality, it has been split in two with the seats printed separately. The body parts should be printed flat side down. Be sure to enable support in your slicer to handle the interior and the rocket nozzles.

Right click on the file name and do a "save as" to save these to your desktop.

Split Jetcar top NS.stl (Has a slot for mounting a windshield)

Split Jetcar bottom NS.stl (Bottom of jetcar)

Split Jetcar bottom w_mounting slot NS.stl (Bottom of jetcar with a slot in it for mounting)

Split Jetcar seats.stl (Jetcar seats)

Fireball Jetcar window.stl (Form for making windshield)

----------------------------------------
